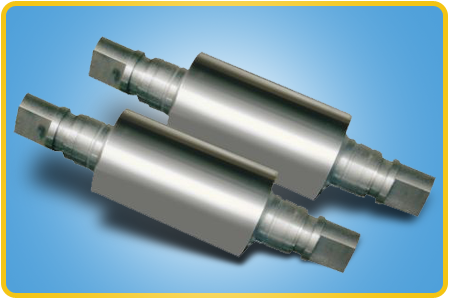

The working surface of United Castings (India) shows the white graphite free structure consisting of eutectic carbide and transformed austentite. This gives a hard layer which confers good resistance to wear. The core and neck are made upon steel shaft in specialized double poured centrifugally cost chill Rollers barrels. Compared to grey iron, white United Castings (India) is less soft, strong and incapable of withstanding high dynamic stresses, but owing to its greater hardness, has better wear-resistance, and has high compressive strength. It retains a fair proportion of its strength at elevated temperature, for example, in hot rolling. These make excellent works in flour Mills, Chemical Industries, steel re-rolling mills, semi-automatic or Automatic plants, Wire roll plants, TMT plants, Roughing mill Rollers, Intermediate mill Rollers for two, three and four-high mills, turning out of high grade ferrous and non-ferrous sheet and strip or section. High Alloy United Castings (India) have proved well. Chill Rolls Manufacturers in India




Chemical Composition



Hs. Range
Shor C
C
Mn
Si
Impact
U.T.S.
Ni
Cr
Mo
55-75
3.00-3.50
0.55-1.20
0.80-1.50
kg.m/cm²20-0.25
kg/mm²20-30
1.45-2.50
0.80-1.40
0.25-0.45
